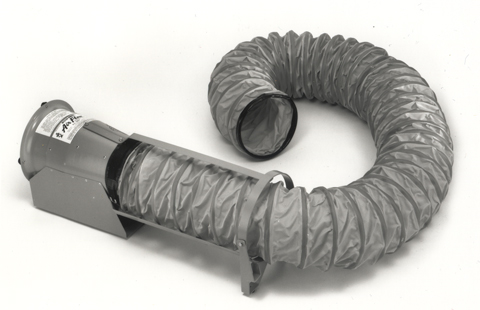

Container/Ventilator Combination Units
Western Progress combination hose container/ventilator/blowers provide the ultimate in portability and convenience.
Western Progress engineers worked to develop a lighter, more rugged and more economical unit that would outperform all previous models. Each version utilizes a field proven model of our popular AirFlow Ventilator/Blower and all include our standard 8" x 15" heavy duty ventilator hose.
All ventilators used in the Western Progress Hose/Blower Combinations units are CSA approved.
Outstanding Features:
Portability and Convenience - The combination design allows the user to carry one piece of equipment to the job site instead of multiple pieces. Also saves on storage space
Complete Hose Protection - When in the stored position, the hose is protected by its own wear strips
Rugged Construction - "Container" unit is constructed of heavy gauge, welded, plated steel and the ventilator uses a durable, spun aluminum housing. All metal parts are painted safety orange for additional corrosion protection.
Heavy-Duty 8" x 15" Hose - Neoprene coated hose with wear strips uses a positive lock securing strap on the ventilator which is easily accessible for hose replacement if necessary. The outlet end uses a non-deforming ring for connection to another hose without the need for an additional coupler.
Lightweight - Only 27-34 Lbs.
|
Ventilator Model:
|
Model 2330
|
Model 2335-A
|
Model 2351-DC
|
|
Hose Size:
|
8" x 15'
|
|
Power Requirements:
|
110 VAC
|
110 VAC
|
12 VDC
|
|
Dimensions:
|
29.5" L x 10" W x 12" H
|
34" L x 12.5" W x 14" H
|
29.5"L x 10"W x 12"H
|
|
Weight:
|
27 Lbs
|
34 Lbs
|
27 Lbs
|
|
Certified Performance:
|
One 90° Bend - 490 CFM
Two 90° Bends - 410 CFM
|
One 90° Bend - 700 CFM
Two 90° Bends - 631 CFM
|
One 90° Bend - 623 CFM
Two 90° Bends - 544 CFM
|
|
