Regenerative Industrial Dryers

Accessories
Filters

Accessories and Options

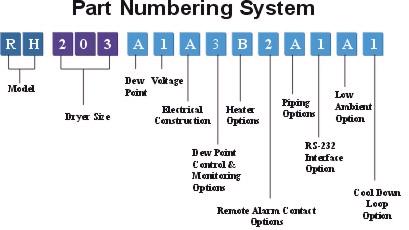

Model:

Model Description
RH Heatless Regenerative Dryer
RE Externally Heated Regenerative Dryer
BP Blower Purge Regenerative Dryer

Dryer Size:

RH RE BP SCFM
203 X X 35
204 231 X 50
205 232 X 75
206 233 X 100
207 X X 125
208 234 X 150
209 235 123 200
210 236 X 250
211 237 X 300
212 238 144 350
213 239 X 400
214 240 X 500
X X 185 600
215 241 X 650
216 242 X 750
X X 205 800
217 243 X 900
218 244 245 1100
219 245 X 1300
220 246 305 1500
221 247 X 1800
222 248 325 2100
223 249 365 2500
224 250> 366 3000
X X 425 4000
X X 485 5000
X X 545 6500
X X 605 8000
X X 665 10000
X X 725 12000

Dewpoint:

A -40°F
B -100°F

Voltage:

1 120V/1ph/60Hz
2 480V/3ph/60Hz
3 220V/1ph/60Hz
4 220V/3ph/60Hz
5 None
6 380V/3ph/50Hz

Electrical Construction:

A Nema 4
B Nema 7
C Total Pneumatic Controls (RH Dryers only)

Dew Point Control & Monitoring Options:

1 None
2 Dew Point Demand Plus
3 Dew Point Demand
4 Dew Point Demand and High Humidity Alarm
5 High Humidity Alarm

Heater Options (RE Dryers Only):

A None
B Heater Overtemp Alarm
C Power Saver Thermal Control
D Heater Overtemp Alarm and Power Saver

Remote Alarm Contacts Options

1 None
2 Remote Alarm Contacts (120V)
3 Remote Alarm Dry Contacts

Pre-Piping and Bypass Options:

A None
B Pre-Piped Filter Package
C Pre-Piped Filter Package with three valve dryer bypass
D Pre-Piped Filter Package with seven valve dryer bypass

RS-232 Interface Option

1 None
2 RS-232 Serial Communications Interface

Low Ambient Option:

A None
B Low Ambient Insulation

Cool Down Loop Option (BP Dryers Only)

1 None
2 Blower Purge Cool Down Loop
