High Inlet Temperature (180°F
Delivering an Unrivaled 35°F Dew Point
High Performance
Three - in - One Dryers
Standard Features | Specifications
Standard Features:
Standard Instrumentation F-3528 thru F-3532
| • On/Off switch with power on light |
| • Dew Point Indicator |
| • Air Inlet Temperature on F-3531 & F-3532 only |
Standard Features
| • Eliminates
need for aftercooler, seperator and drain trap before dryer |
| • Stainless
Steel Heat Exchanger |
| • Pressure
dewpoint as low as -35°F |
| • Filter
Element -40 Micron |
| • Mechanical
moisture seperator with Electronic Timer Drain |
| • Handles
Inlet Temperature up to 180°F |
| • Includes
monitoring instrumentation |
| • 6ft.
electrical cable with grounded plug on Models F-3528-F3530 with
115VAC |
| • Refrigeration
system utilizes environmentally safe R-134A refrigerant |
| • Dew
Point Indicator |
| • Two year Warranty |
| • Five year Heat Exchanger Warranty |
Flow Capacity CFM @ 160°F/35°F Pressure Dew Point
F-3528 |
21 |
21.9 |
24 |
F-3529 |
30 |
36.8 |
40 |
F-3530 |
50 |
56 |
64 |
F-3531 |
70 |
81 |
88 |
F-3532 |
105 |
130 |
140 |
Capacity CFM @ 140°F/35°F Pressure Dew Point
F-3528 |
24 |
27 |
29 |
F-3529 |
44 |
49 |
53 |
F-3530 |
70 |
78 |
83 |
F-3531 |
85 |
95 |
102 |
F-3532 |
148 |
167 |
178 |
Capacity CFM @ 120°F/35°F Pressure Dew Point
F-3528 |
34 |
37 |
39 |
F-3529 |
50 |
58 |
64 |
F-3530 |
70 |
81 |
90 |
F-3531 |
100 |
115 |
128 |
F-3532 |
210 |
229 |
240 |

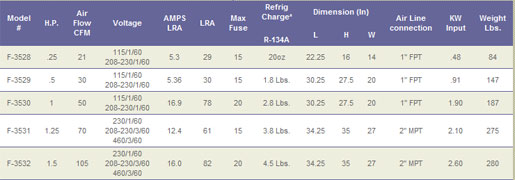

Specifications:
Specifications
Click to View Full Size Table
|
